More precise surgical tool offers a solution to waiting lists

Deep-brain stimulation (DBS) can, among other things, alleviate uncontrolled movement and trembling in Parkinson’s patients. However, the existing technology to place DBS electrodes in the brain is imprecise, so that only top specialists achieve a good success rate. TU/e researcher Marc Janssens has therefore developed new instruments that brain surgeons with less experience with DBS can use to place the electrode with precision in the right place in the brain. This can help to shorten the waiting lists.

by
photo Bart van Overbeeke

In DBS, the surgeon places electrodes deep into the brain, through small openings at the top of the skull. The electrodes are connected to a pacemaker that delivers pulses, which virtually suppresses the uncontrolled movement and vibration of the limbs. The treatment makes a normal life possible for patients again. Unfortunately, as the largest Dutch newspaper De Telegraaf reported in February, waiting times are long, which led to parliamentary questions. In the Netherlands, the waiting period can be as long as two years, and in other countries, too, this is a similar problem.

The DBS electrodes in Parkinson's disease patients usually have to end up in the nucleus subthalamicus, a crucial part of the brain that measures only eight by four millimeters. The greater part of it is focused on movements, but the edges control emotions and learning processes, among other things. Highly precise positioning is therefore essential. The bottleneck here is the current technique is to place the DBS, a technique that has not essentially changed since the invention of DBS in the nineties.

Error range

Surgeons now still place DBS electrodes by clamping to the patient's head a construction that is actually too weak for that precise task. However, the greatest inaccuracy is caused by the fact that there is no fixed reference point for the placement of the electrodes. The doctors first localize the target in the brain with an MRI scan, and with a CT scan they then record the position of the skull in relation to the construction on the head, the stereotactic frame. These two images are placed over each other to see where the target is relative to the frame. This results in a margin of error that can be as high as a few millimeters, which is considerable in view of the small size of the target, the nucleus subthalamicus.

Marc Janssens developed an entirely new technique that is much more precise. The key role in this is played by the adaptor disc he developed, which gives the intervention a fixed reference point. This disc is placed on the back of the head using three surgical screws. This is much less unpleasant and less painful than the stereotactic frame, which is clamped to the head with four pins through the skin. The disc contains a reference triangle that is clearly visible on the MRI scan.

Extremely compact and stiff

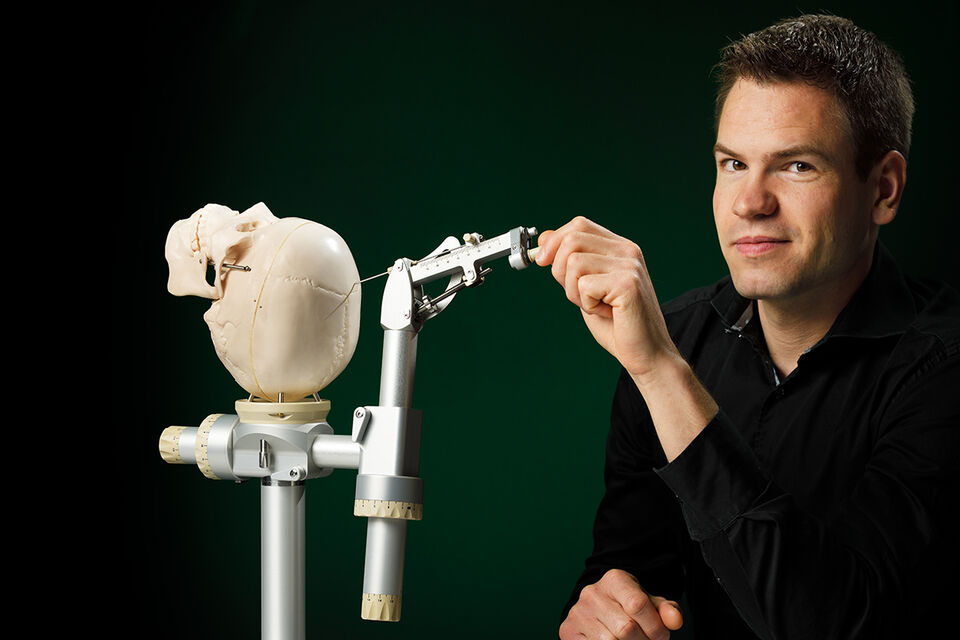

After the MRI scan, the patient goes to the new instrument that Janssens designed and built for the placement of the electrodes. The adapter disc, which is still attached to the head, is clicked onto it, so that the patient takes the fixed reference point with him. Its positioning device is extremely compact and rigid, allowing much higher precision than the conventional positioning arch. Combined with the fixed reference point, the procedure is expected to be accurate to one millimeter or less.

As a result, brain surgeons who do not often perform this procedure can still perform successful interventions. An additional advantage is that, in principle, patients no longer need to be conscious. In current practice, this is still necessary: the surgeon needs reactions from the patient to see if the electrodes are in the right place. The patient must therefore experience the unpleasant procedure from A to Z for some hours. With the new, high level of precision, the patient’s feedback is no longer necessary, allowing him to undergo the operation quietly under anesthesia. All in all, this can significantly lower the threshold for the DBS interventions, so that this successful treatment can be made available to more patients.

Craftsmanship

With mechanical instruments where high precision is crucial, high-tech robotic solutions are quickly thought of. A special feature of Janssens’ instruments is that they do not involve any electronics; they are completely manual. This craftsmanship makes the instrument particularly reliable, light, compact and relatively inexpensive. Eindhoven Medical Robotics intends to further develop the instrument and bring it to market.

Supervisor for Marc Janssens’ doctorate is Maarten Steinbuch, Professor of Control Systems Technology.
