TU/e team to build Da Vinci bridge with a span of 50 meters

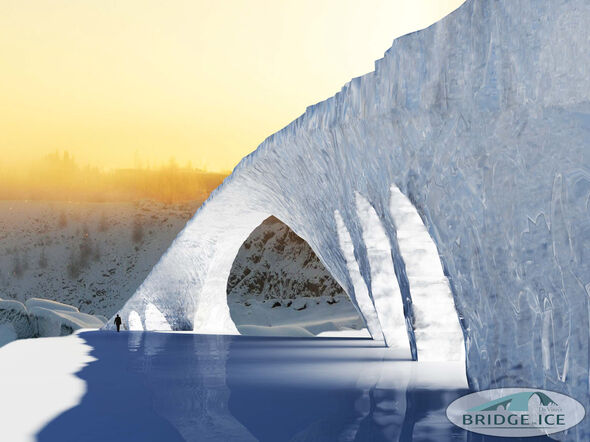

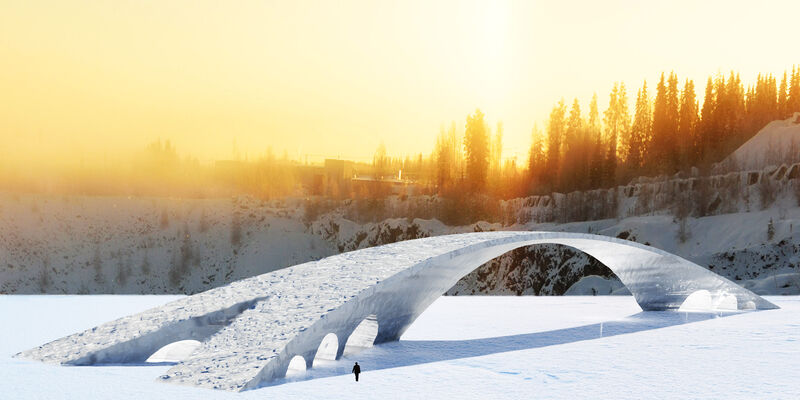

A group of students from TU/e plan to build an ice bridge reinforced with paper fiber. The 100 meter long bridge, based on a design by Leonardo da Vinci, will have a span of 50 meters – the longest open span ever built from ice. If the task succeeds, the bridge will beat the earlier world record set by a group of TU/e students in 2014 with a 30 meter ice dome.

A total of around 100 students and volunteers will travel to Juuka in Finland this winter to build a huge bridge. Construction of the foundations will start at the end of December in Finland, and the bridge should be completed in mid-February 2016. The universities of Leuven, Aalto (Helsinki), Ghent, Bath and Edinburgh also intend to build ice structures, which together with the bridge will provide a big spectacle on ice. Students from Eindhoven already built the world’s largest ice dome (2014), and a 30 meter high church (2015). These projects too are based on ‘pykrete’: ice reinforced with wood or paper fibers.

“It will be a long, narrow bridge providing a new constructional challenge”, is how project leader and TU/e lecturers Arno Pronk explains the project. “There have been bridges of 15 meters, but we’ve never seen one as long as this.” The bridge is based on a design by Leonardo da Vinci for a bridge over the Bosphorus – although that we never actually build. That’s why the full name of the project is the Da Vinci’s Bridge in Ice. The ice bridge uses the same constructional principle as Da Vinci’s bridge: the whole structure is only subject to compression loads. When the bridge is finished it will carry pedestrians. The structure can easily handle that, says Pronk. “A car should be able to drive over it with no problems.”

Pronk and the two students who are leading the project together, Roel Koekkoek and Thijs van de Nieuwenhof, want to show that pykrete is an excellent building material for temporary structures. “Pykrete offers an easy way to build slim, safe and low-cost temporary structures – for example for temporary roads in arctic regions, at events or for ice hotels.”

The bridge is built by spraying thin layers of water and snow onto a large inflated template, and then letting it freeze. Layers snow and water are sprayed alternately, with ten percent paper fibers. The mix is then immediately absorbed by the snow, and it all freezes together. The addition of fibers makes the material three times as strong as normal ice, and also a lot tougher. The builders will work in shifts, 24 hours a day in the freezing cold. That’s because the equipment would freeze if the work was stopped for too long.

The ice bridge will be built in a 70 meter deep quarry. The students will allow water to freeze in the walls, creating a kind of ‘ice arena’. Just as in past years, the ice project is expected to attract thousands of visitors.

Source: press team TU/e
